Cooling System Model

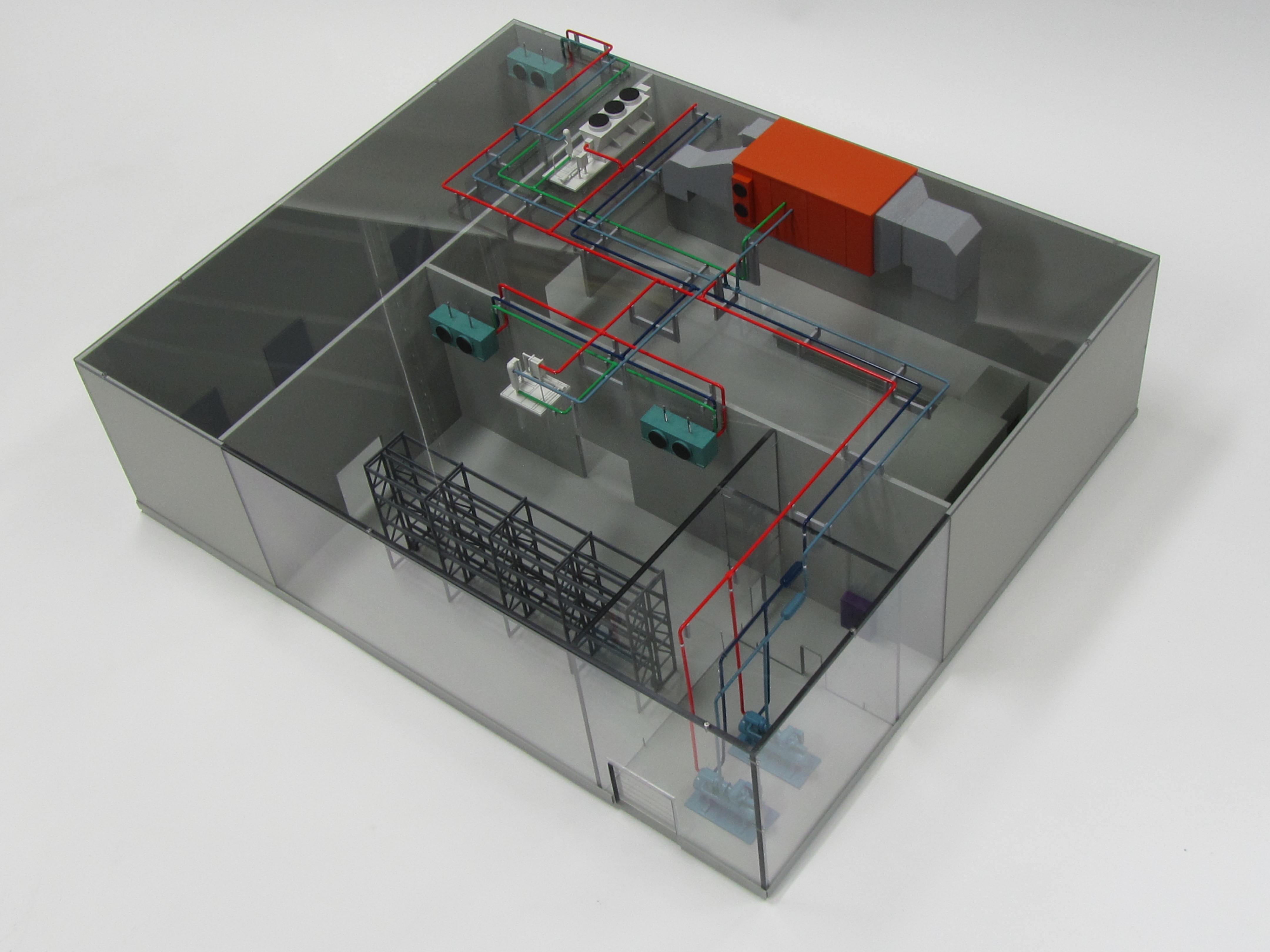

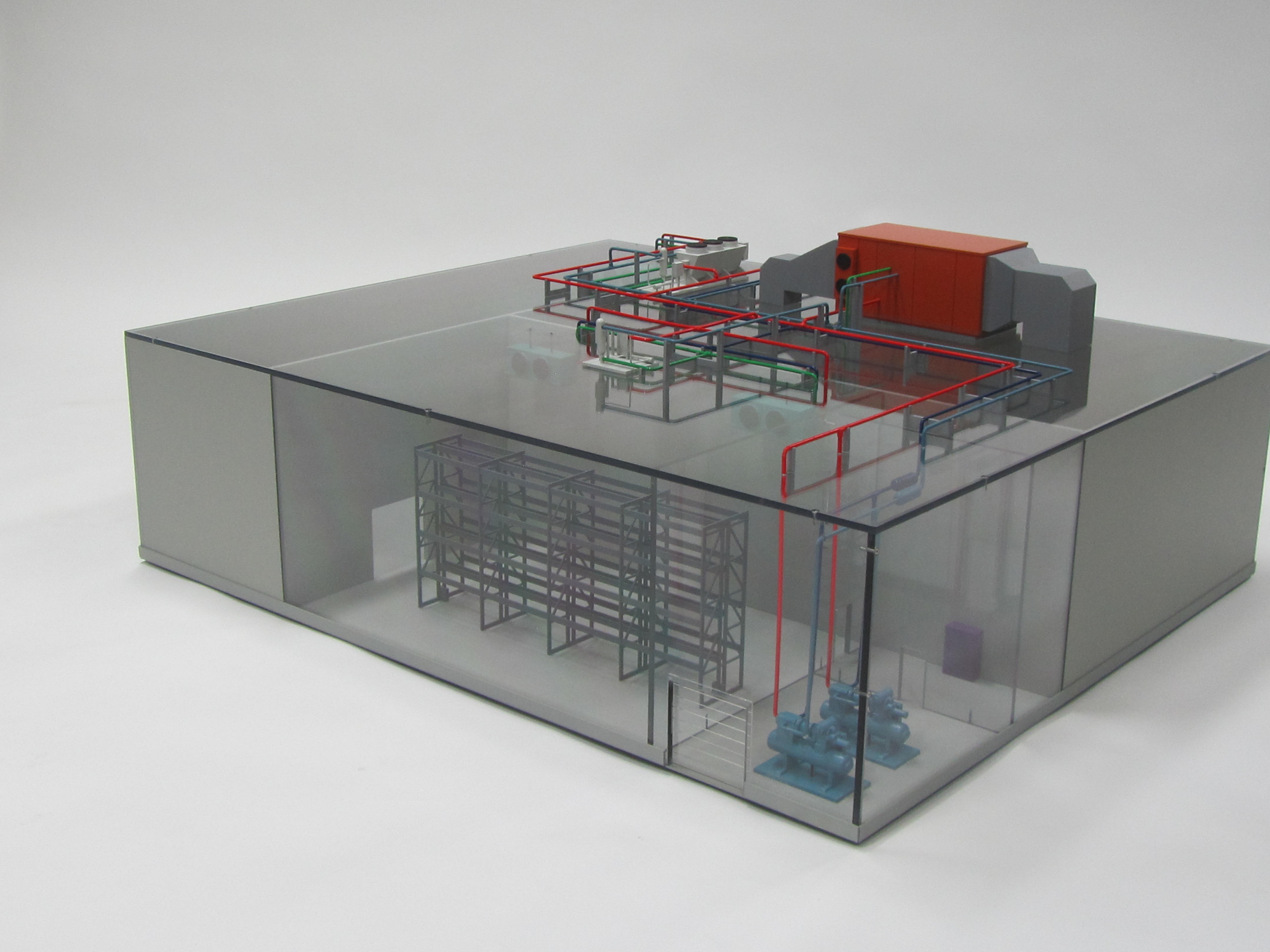

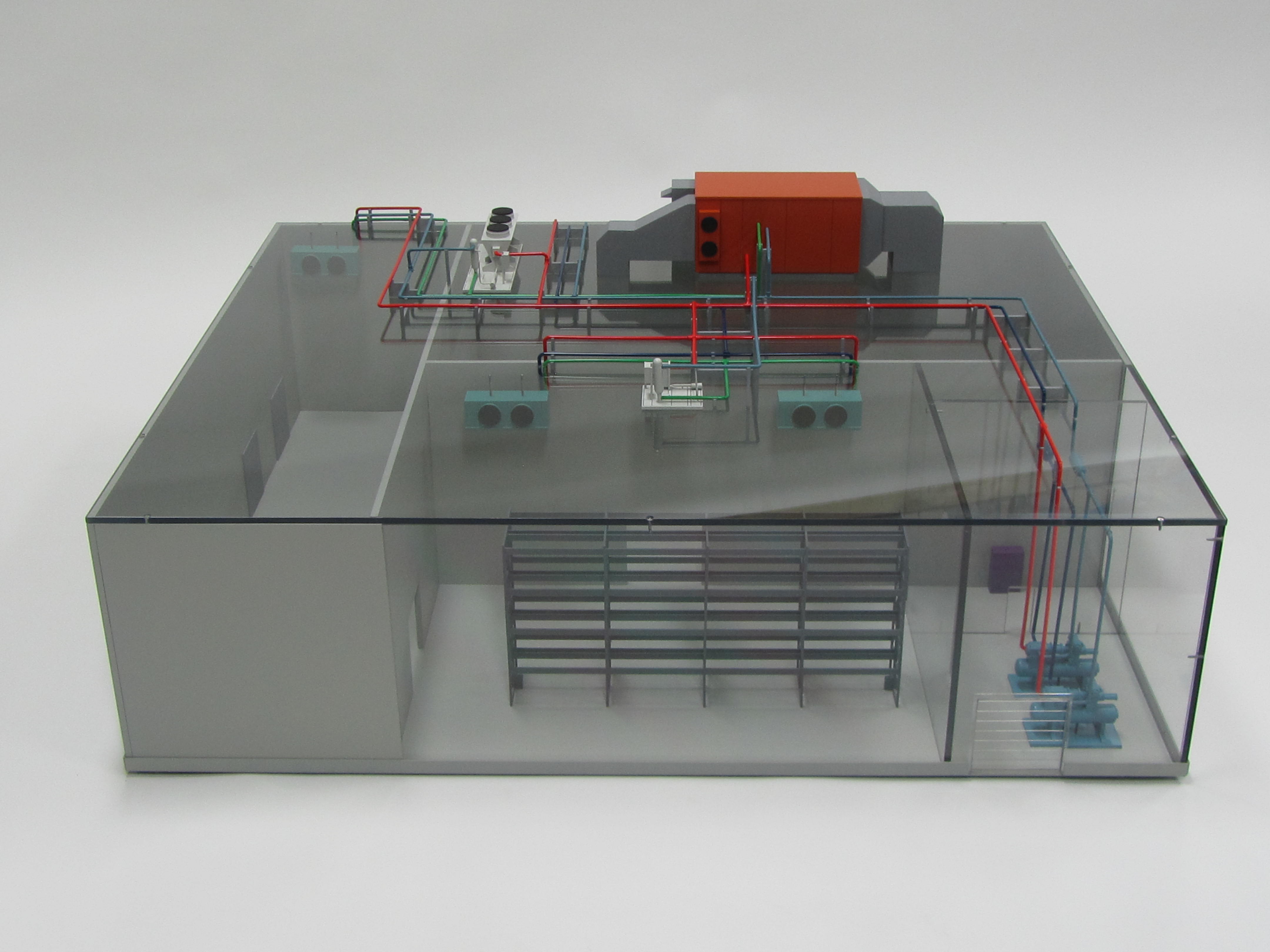

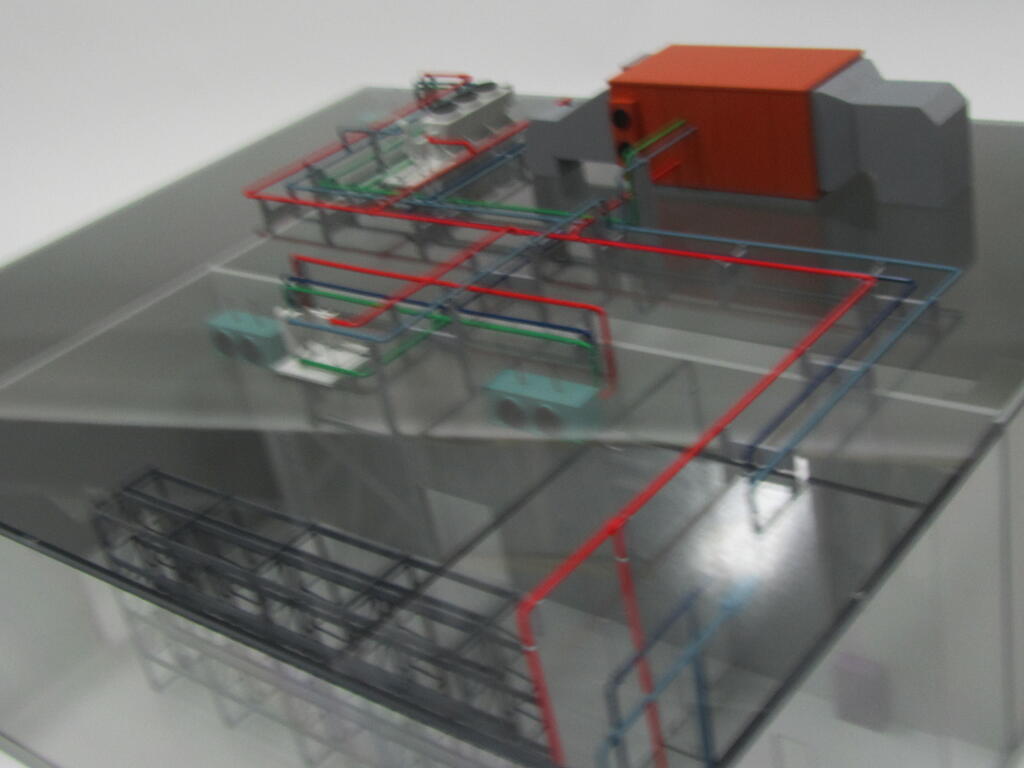

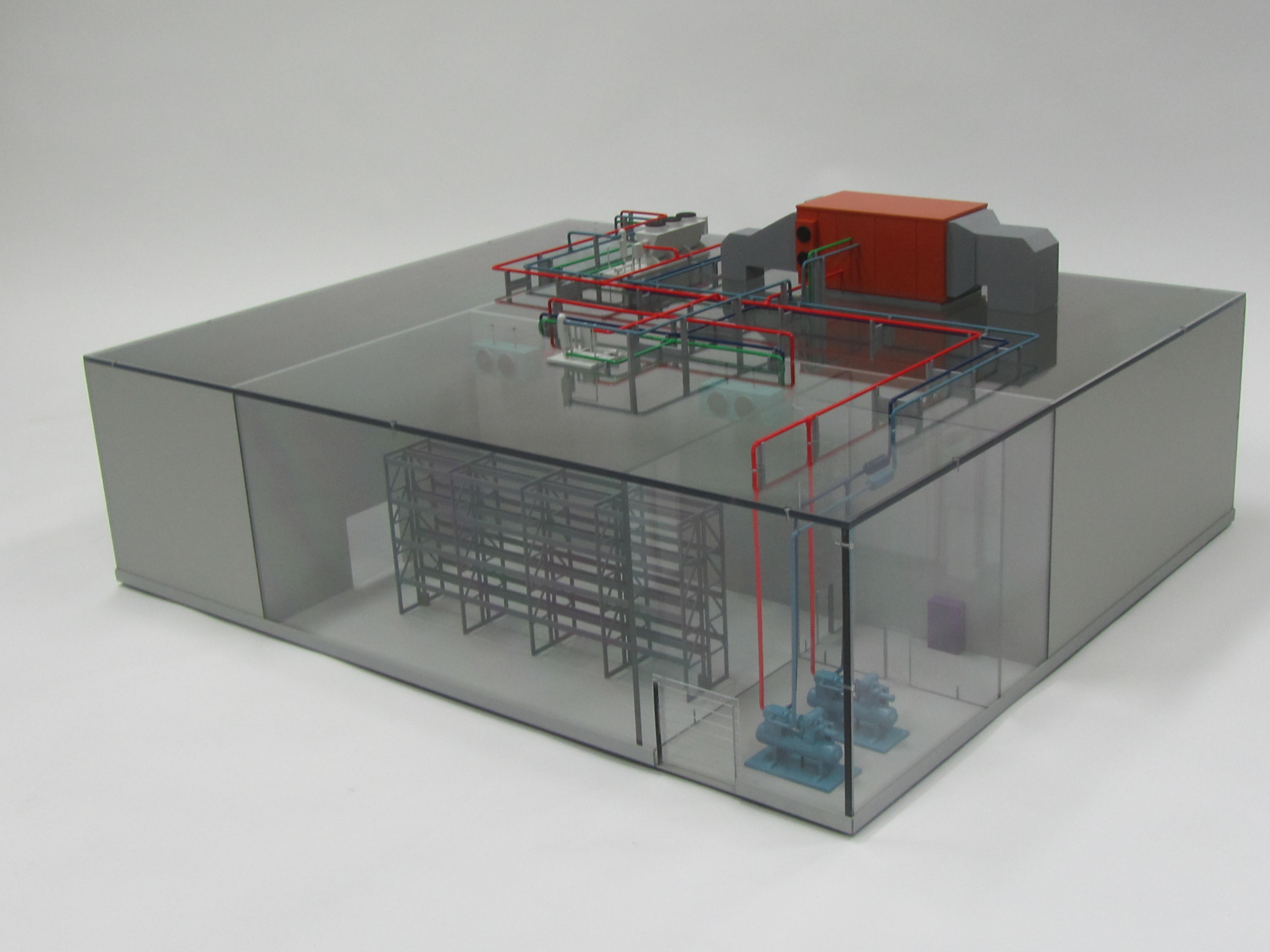

This cooling system model is a simplified display of a refrigerated production facility. The purpose of the model was to highlight the client’s piping system, shown in bright colors. The rest of the equipment was made into simple, easily identified shapes and painted grey to minimize distractions.

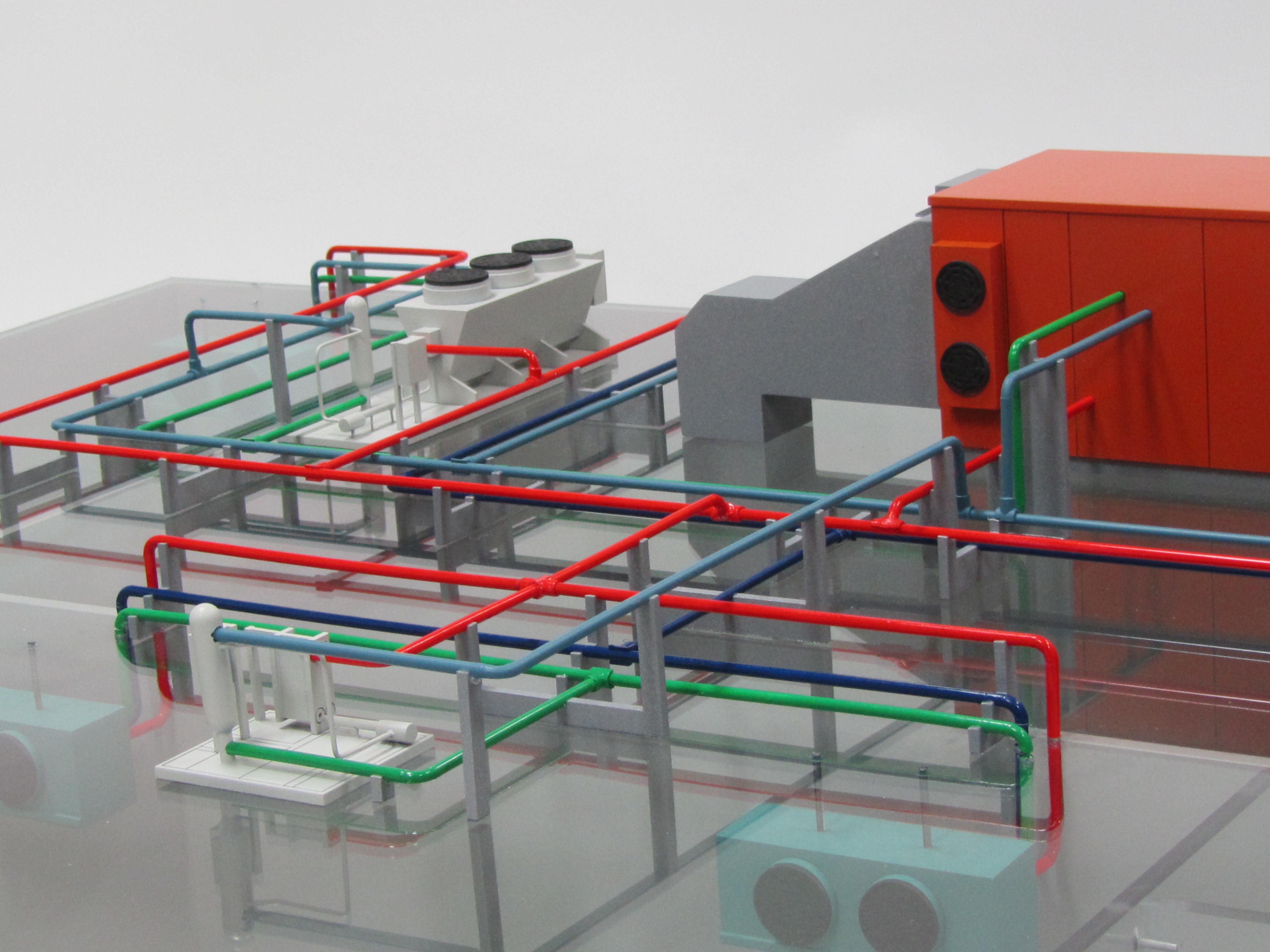

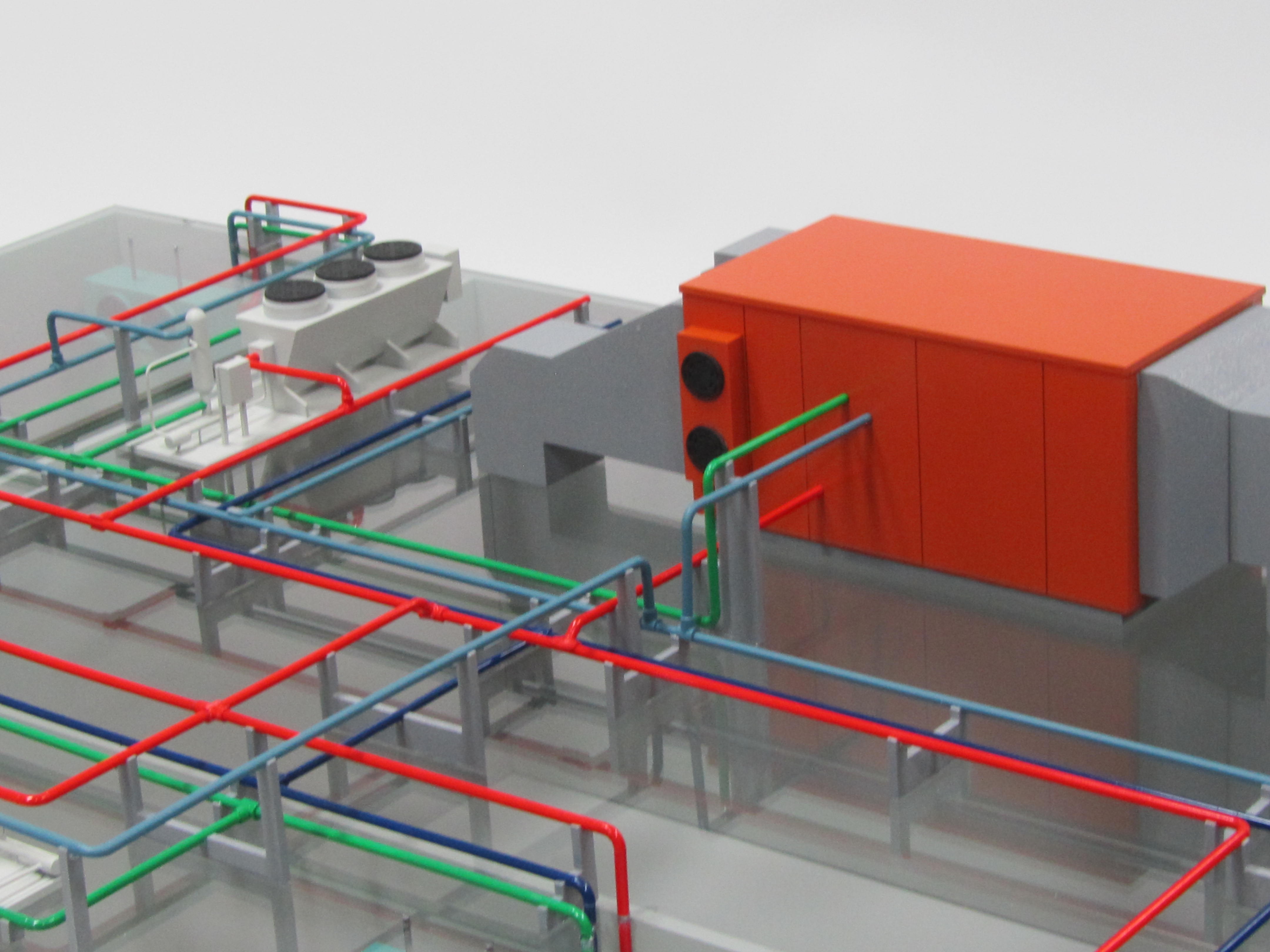

The highlighted pipes are color coded to match a brochure rendering of the cooling system.

The majority of the cooling system model was made out of very strong polycarbonate to protect the delicate piping within.
