Lubrication System Model

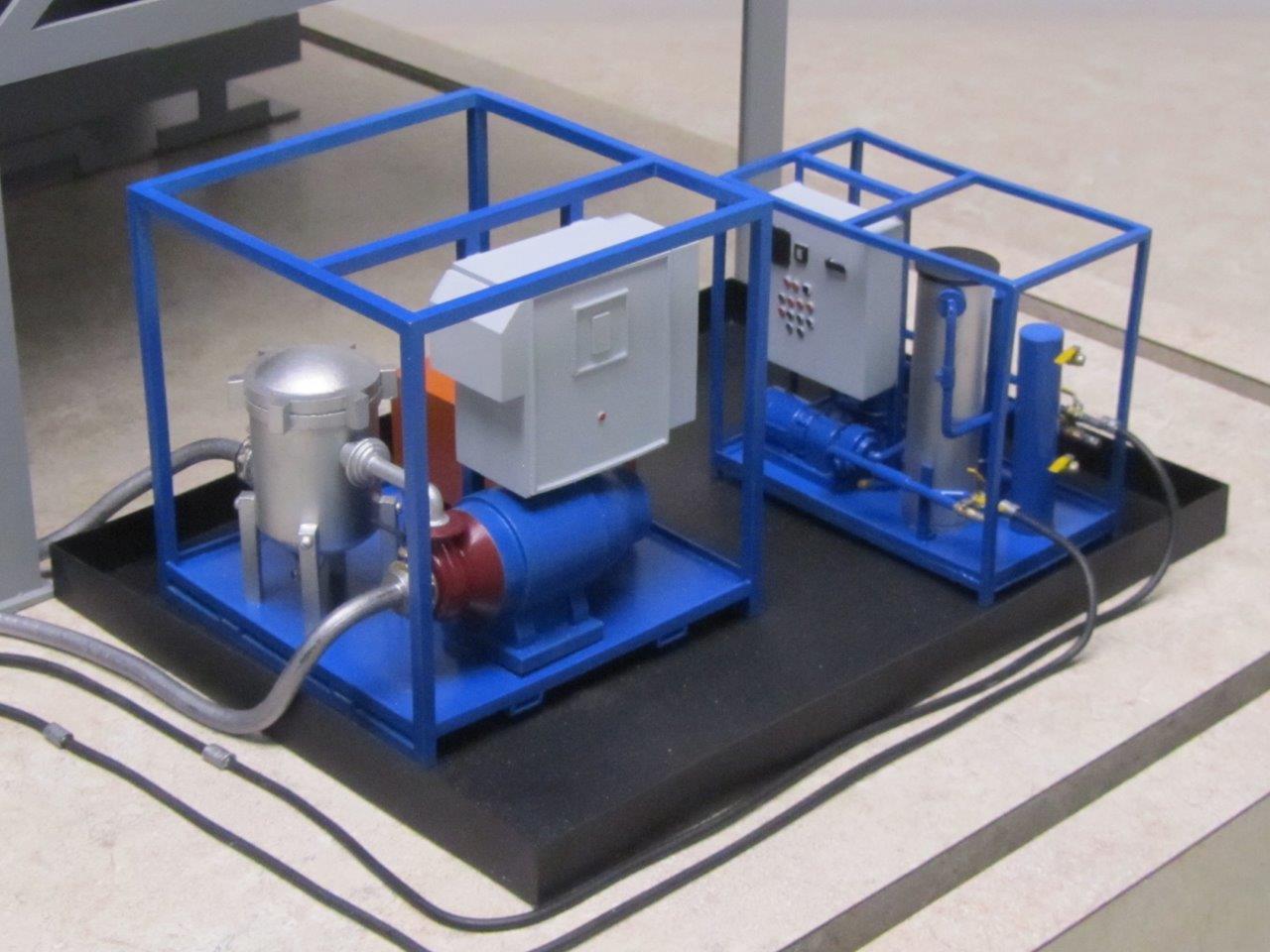

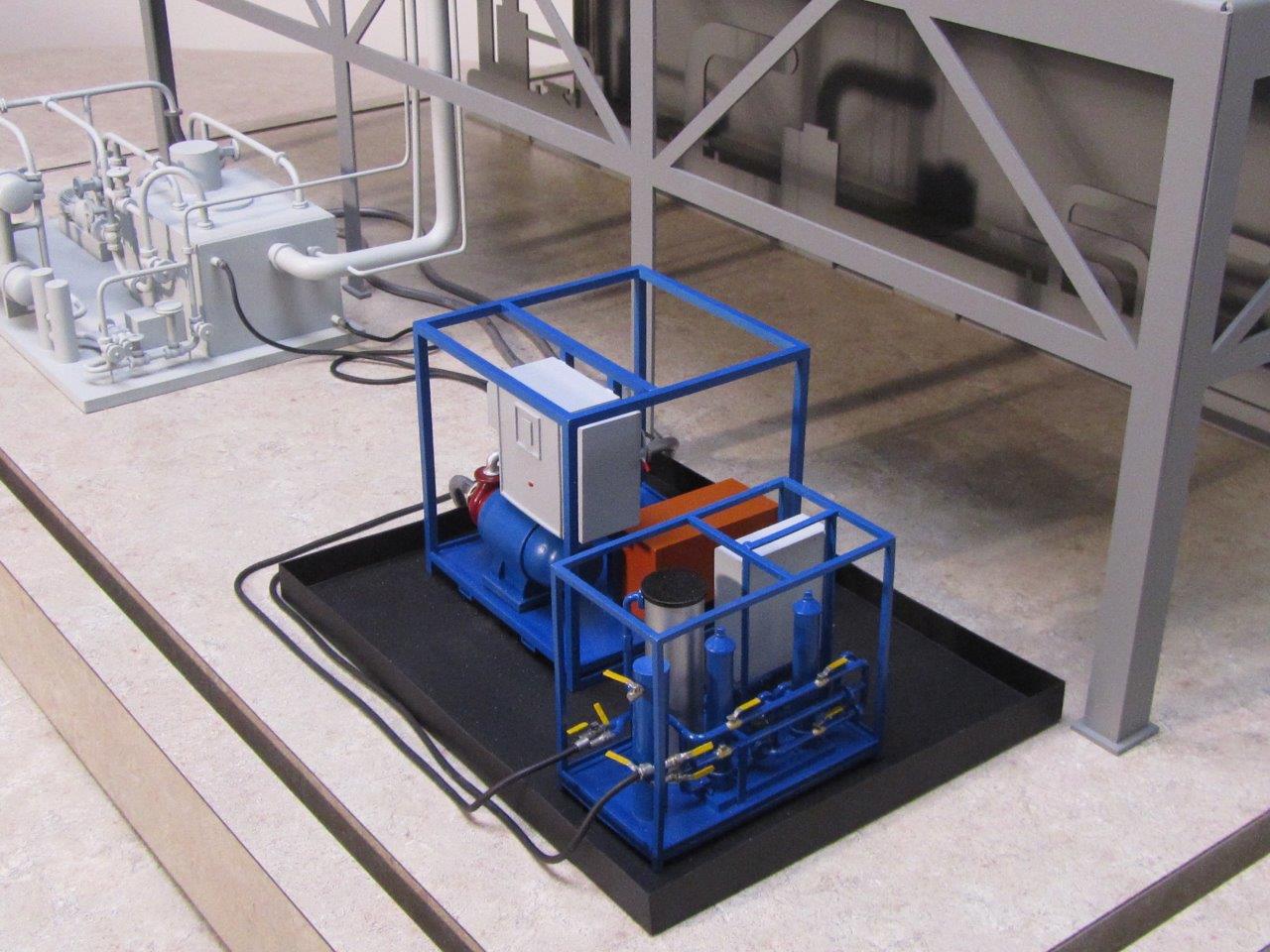

This lubrication system model was built to highlight our client’s particular product within an overall industrial system. The colored portion of the model consists of our client’s product. The grey portions of the model provide a backdrop for the featured product.

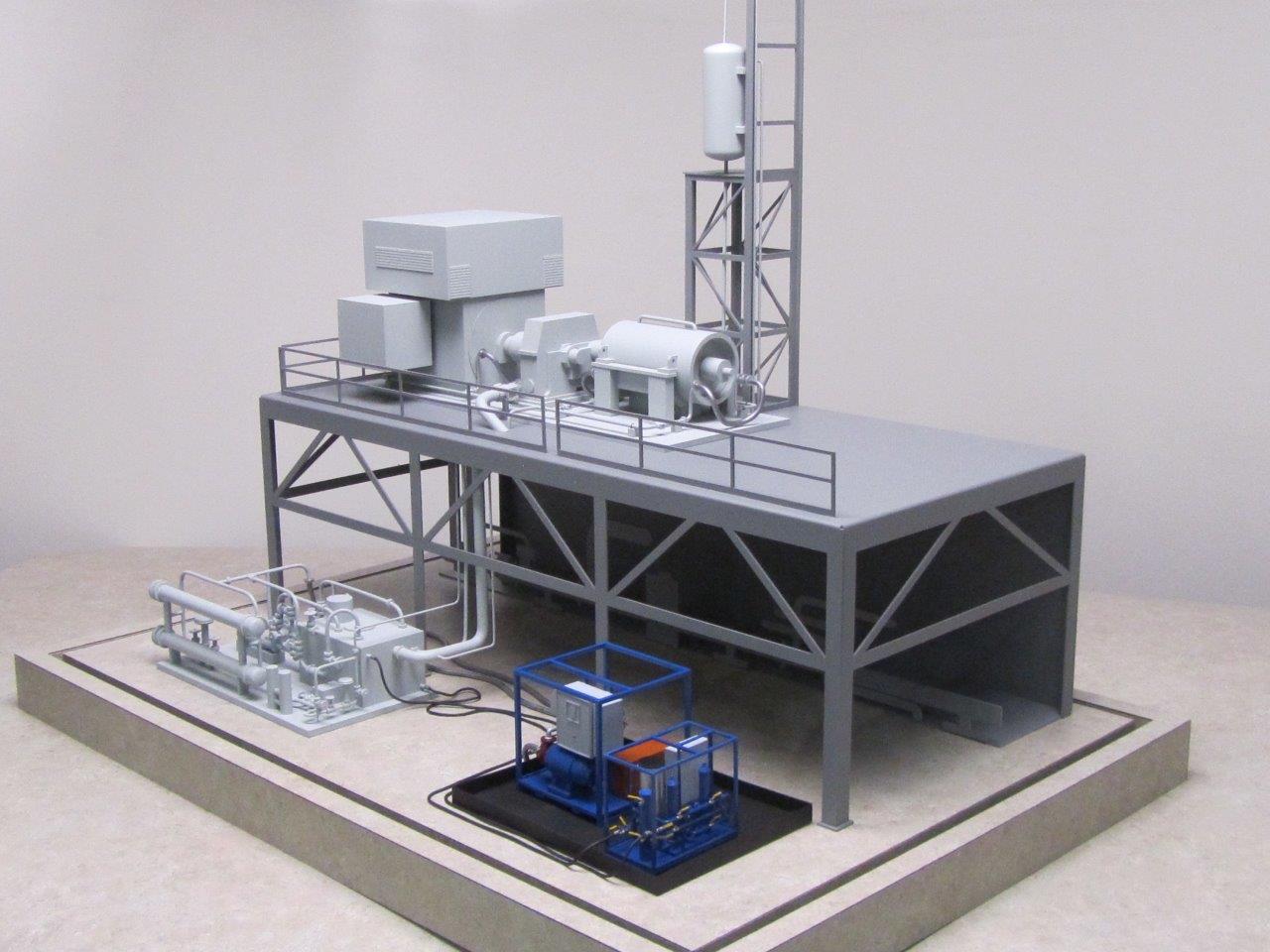

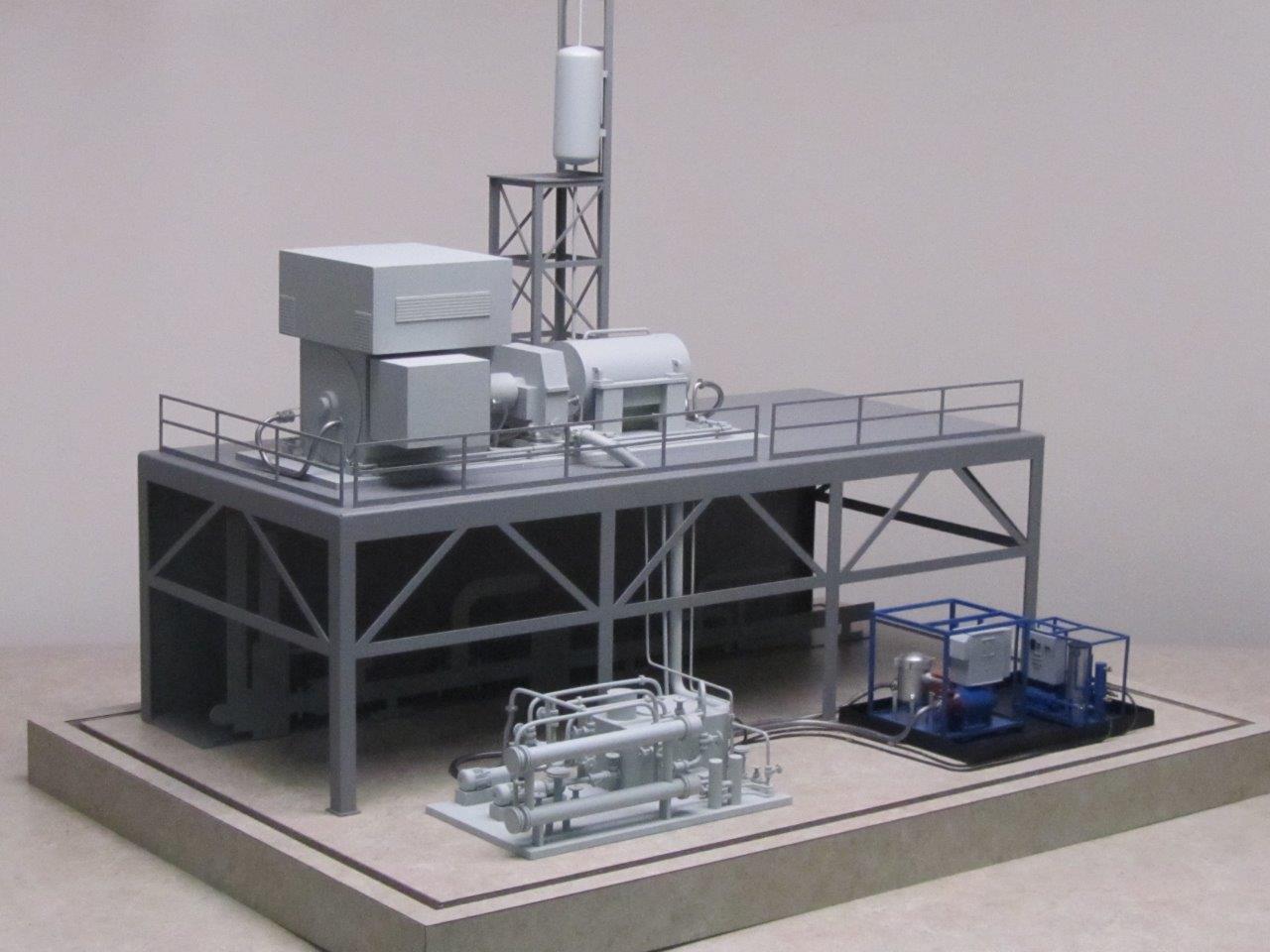

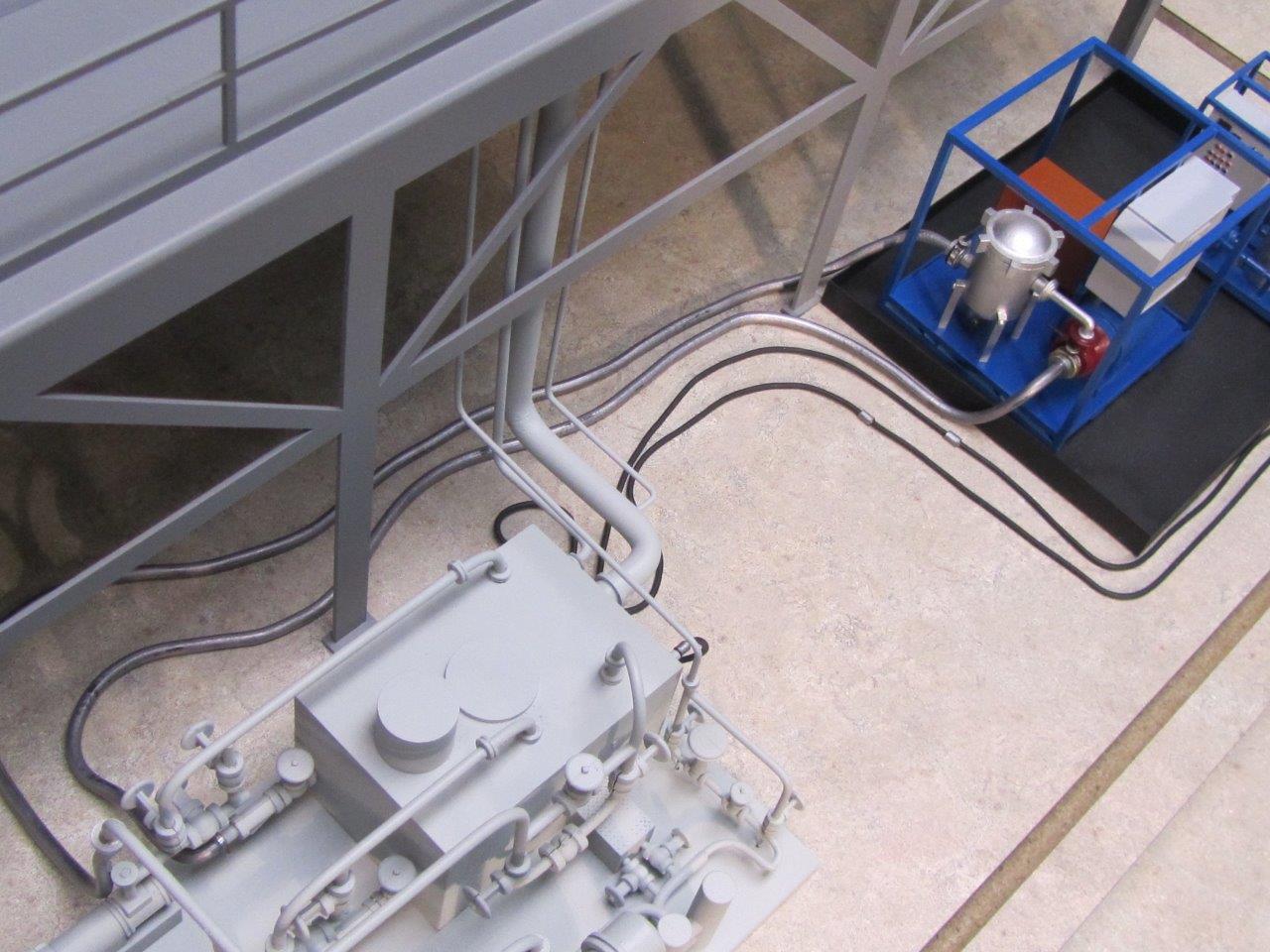

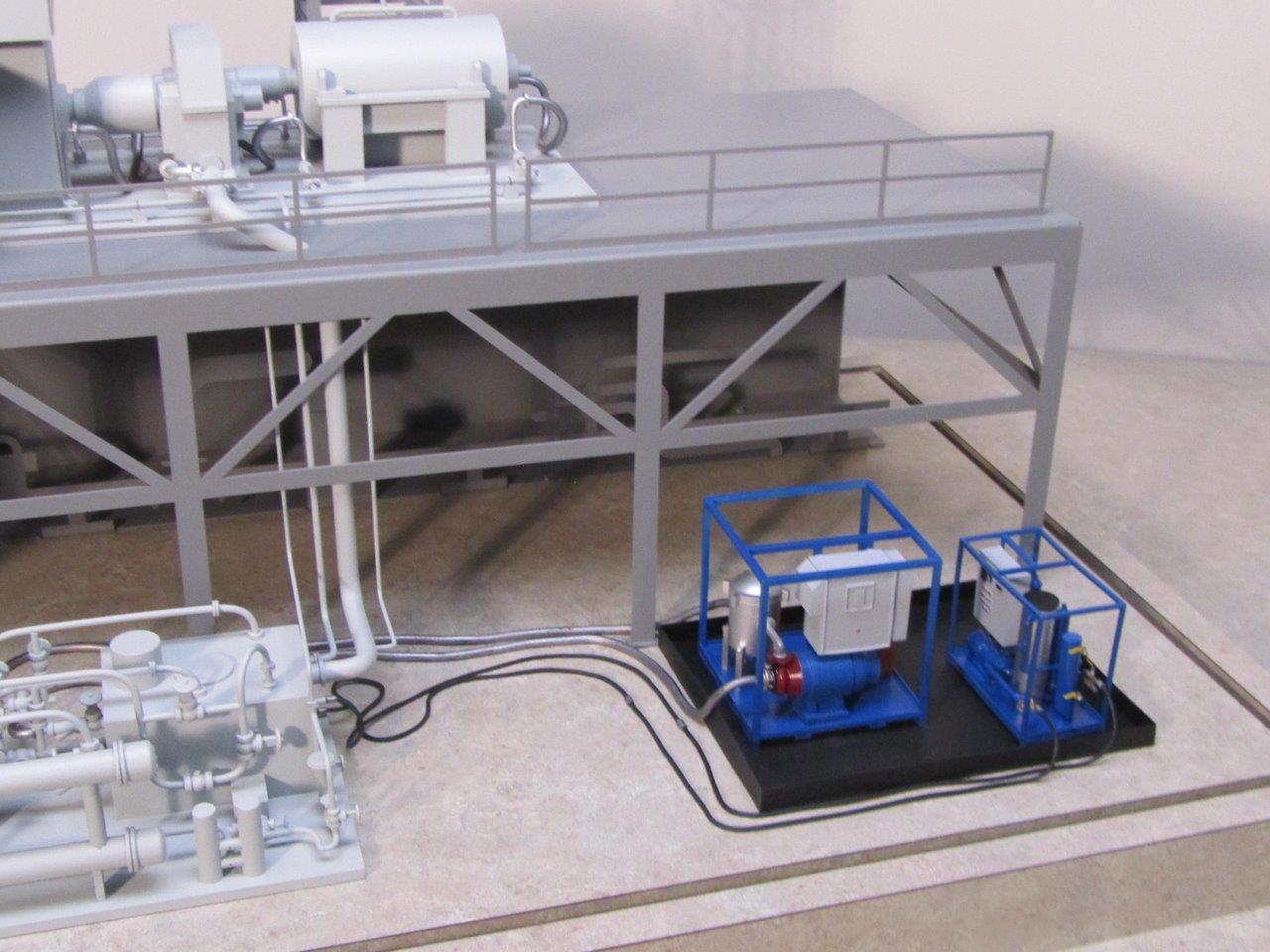

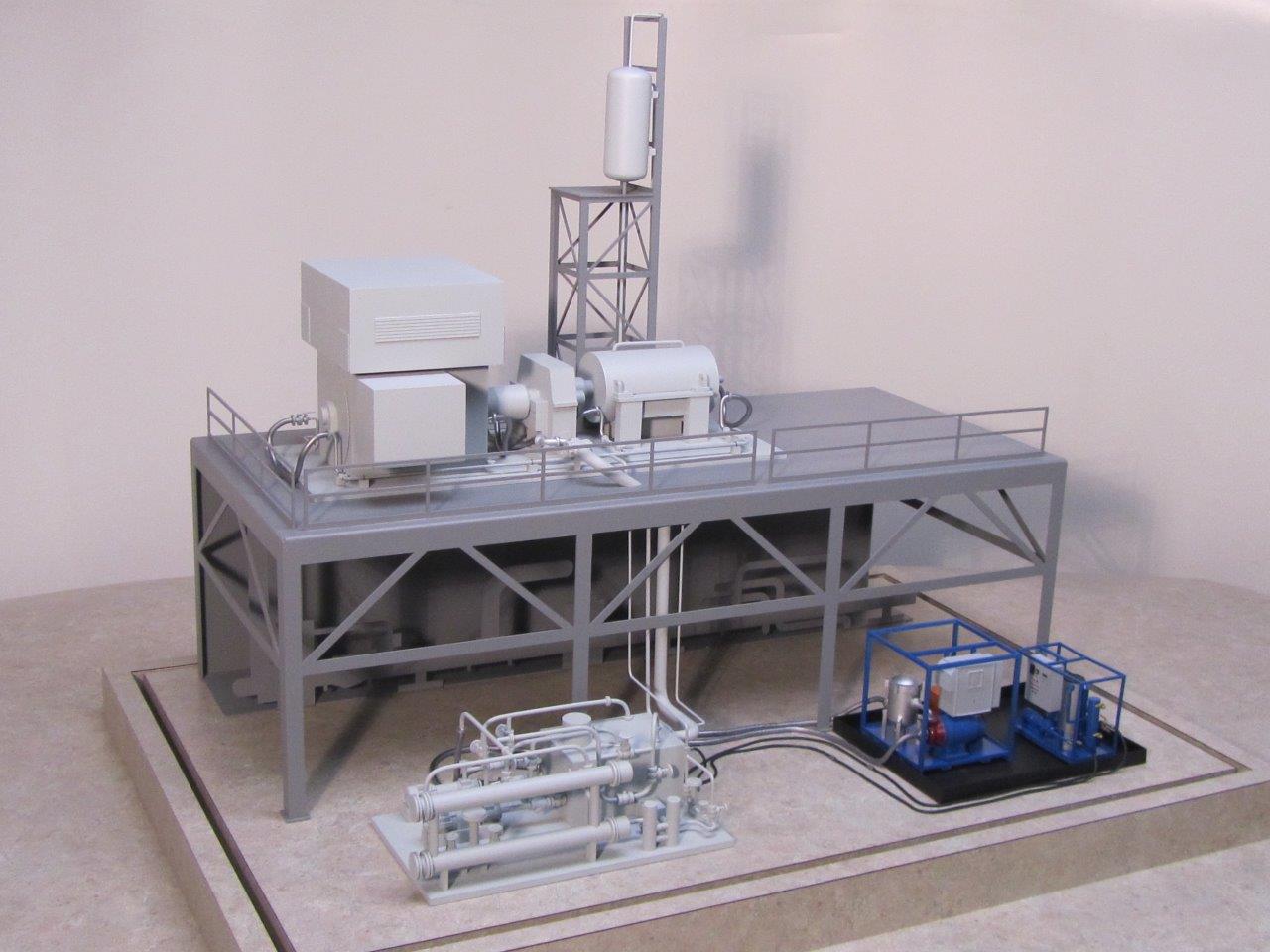

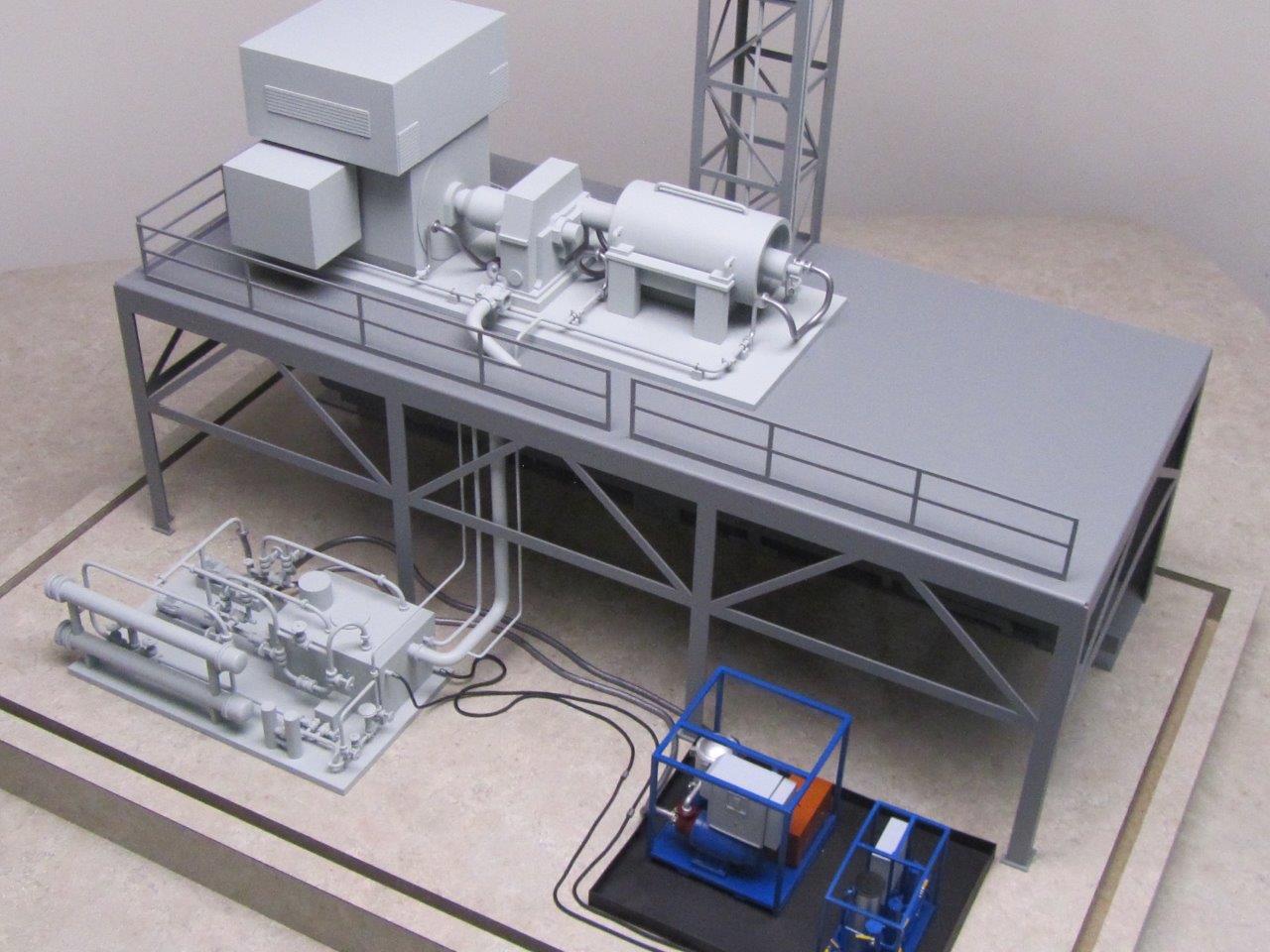

It was important to our client that the model demonstrate how their product is installed in a lubrication system. Connections are particularly important. As such, the valves and hoses are laid out and depicted in an orderly, systematic fashion, just as they are in real life.

The bulk of the model is formed in one piece from aluminum sheet metal. Other materials used in the lubrication system model include various plastics, tooling board and brass.The hoses themselves are fashioned out of bent metal wire.
